Facts & Figures

FLAPP 50 basic measurements

Dimensions FLAPP 50 Base Module, Dimensions
Open as Counter: (H x W x D) 945 x 800 x 611 mm
Open as Presenter: (H x W x D) 1384 x 800 x 414 mm
Folded: (H x W x D) 945 x 800 x 80 mm

FLAPP 50 Transport Data
(H x W x D) 860 x 1150 x 100 mm
Transport Weight Base Unit: 9.9 kg
Transport Weight: 18.5 kg (Base + Bandboard S + Graphicboard M + Sidecover + Bag)

FLAPP 50 Presentation Weight Counter
approx. 20-25 kg

FLAPP 50 Presentation Weight Presenter
Evenly distributed approx. 20 kg

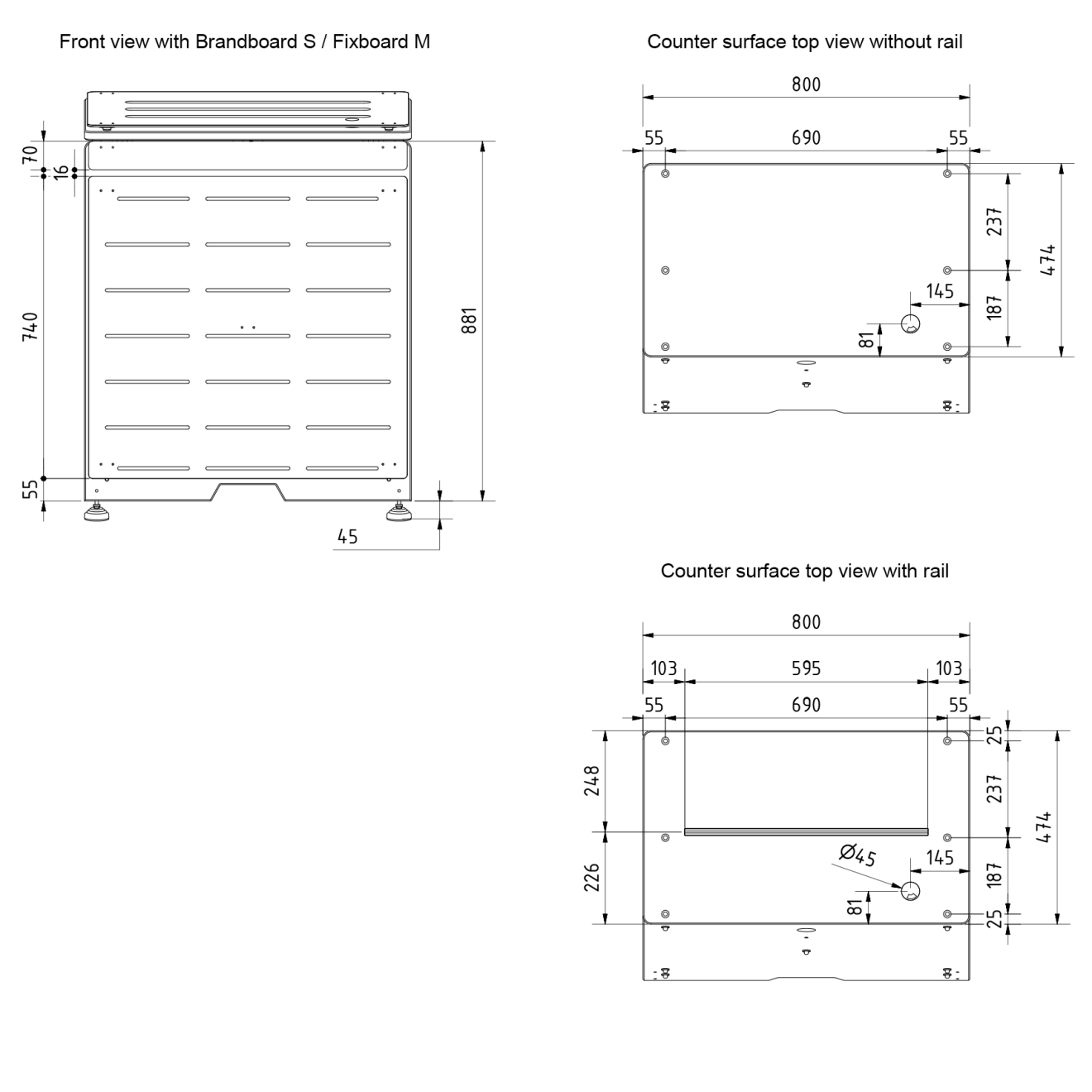

FLAPP 50 detailed measurements counter position

Measurement: millimeters

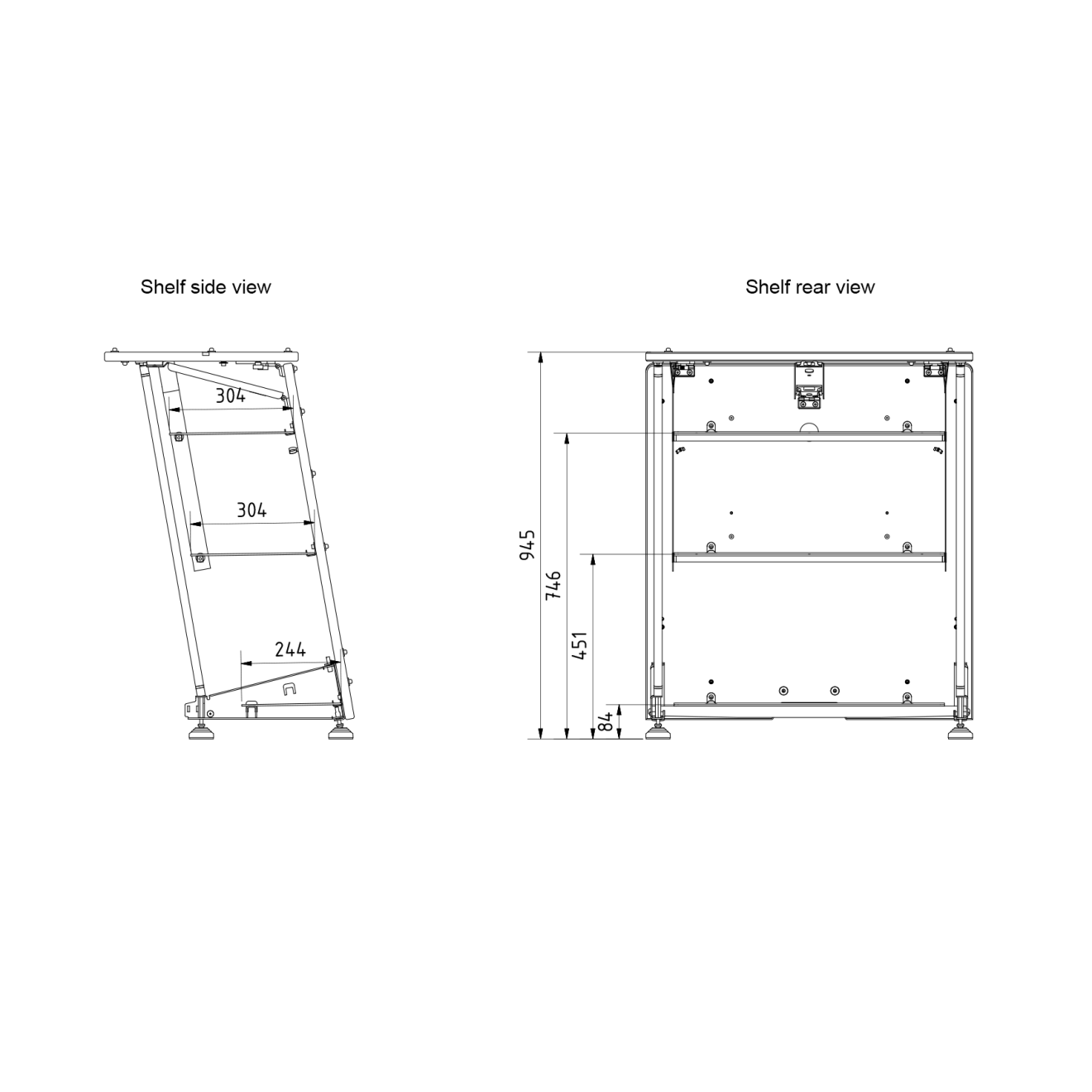

FLAPP 50 shelf board set dimensions

Measurement: millimeters

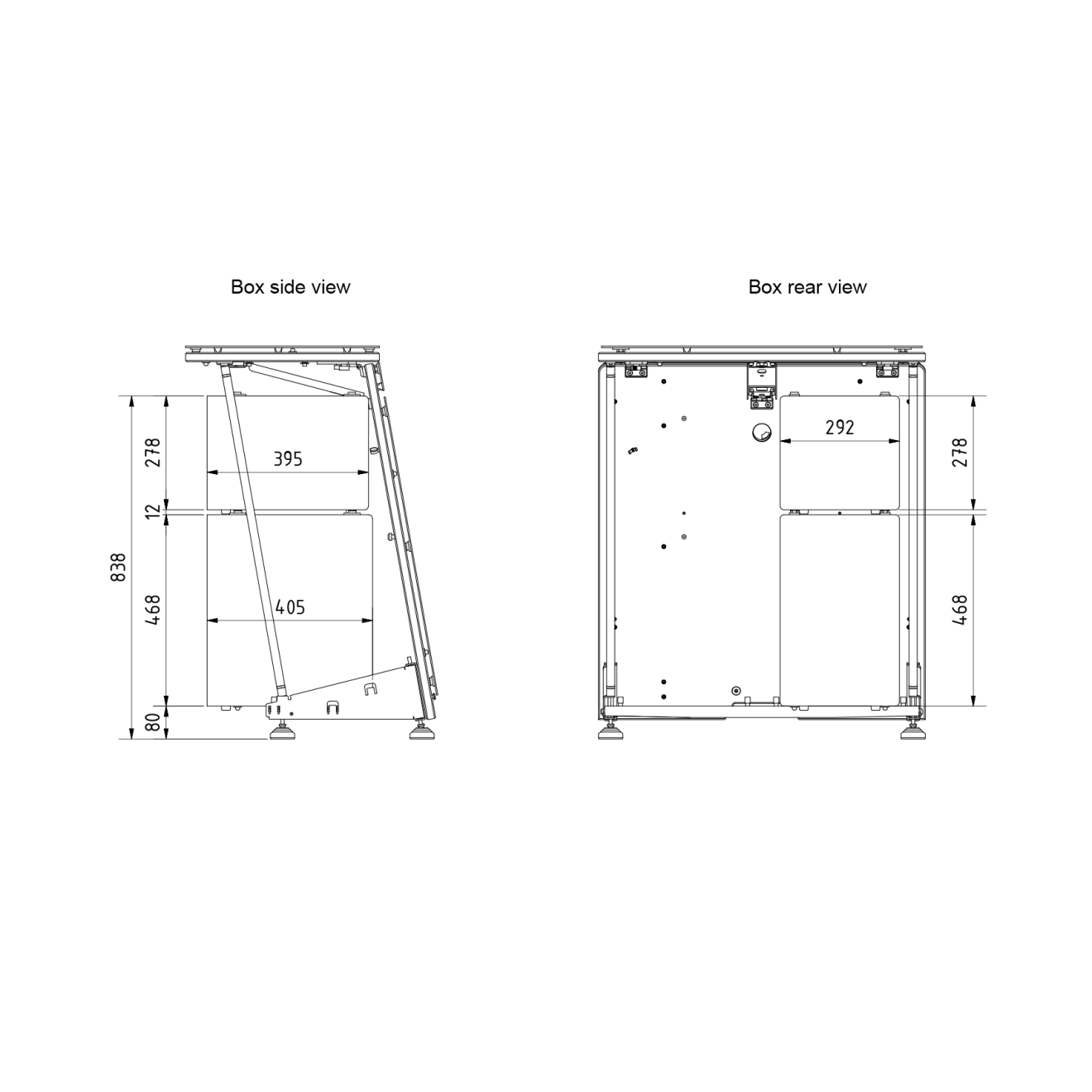

FLAPP 50 dimensions box system

Measurement: millimeters

FLAPP 50 detailed dimensions presenter position

FLAPP 50 Front dimensions
Measurement: millimeters

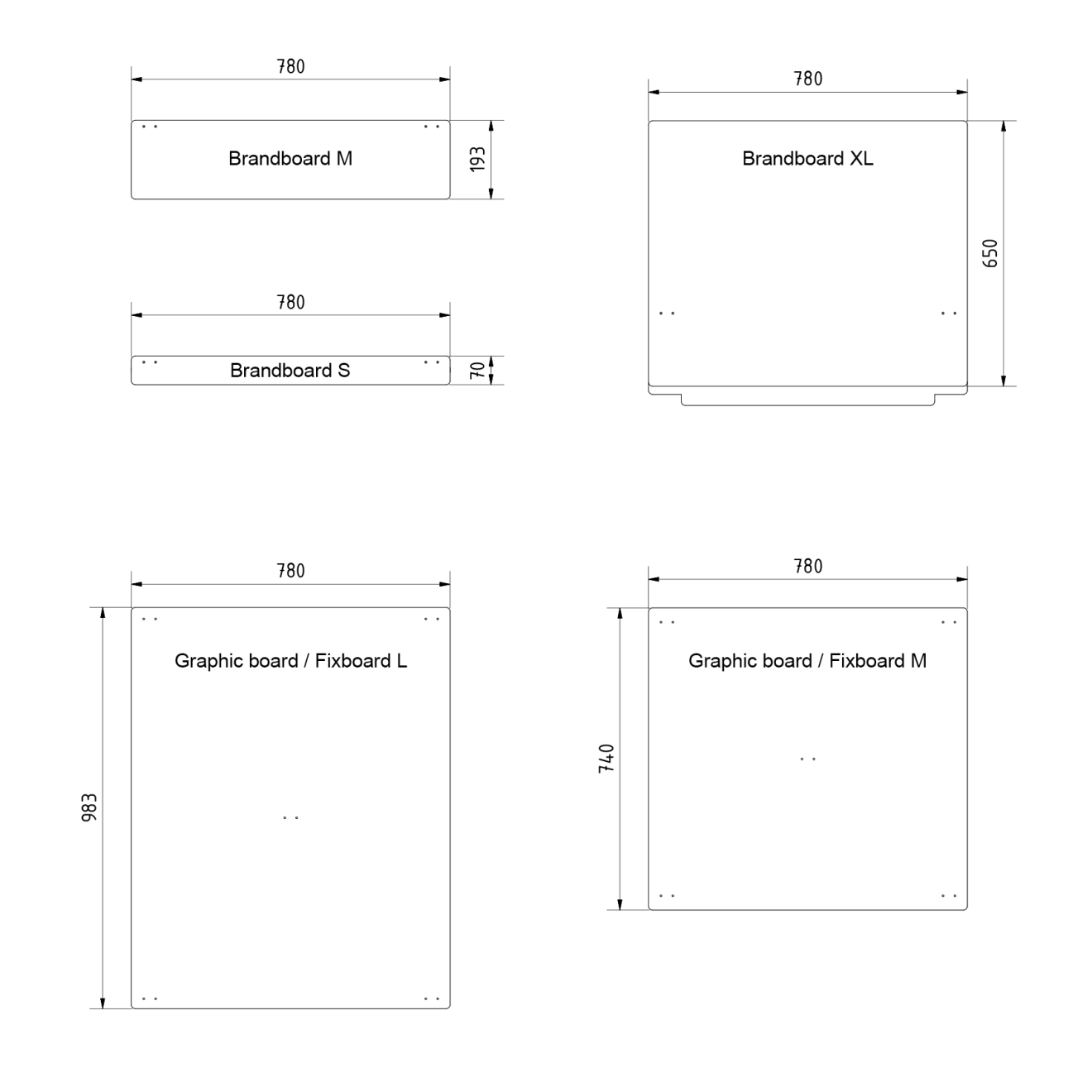

Basic dimensions of boards

FLAPP branding areas
Brandboard S: (H x W) 70 x 780 mm
Brandboard M: (H x W) 193 x 780 mm
Brandboard XL: (H x W) 650 x 780 mm
Graphic board / Fixboard L: (H x W) 982 x 780 mm
Graphic board / Fixboard M: (H x W) 740 x 780 mm

Detailed dimensions Slatwall Fixboard M

FLAPP presentation area
Fixboard M: (H x W) 740 x 780 mm

Detailed dimensions Slatwall Fixboard L

FLAPP presentation area
Fixboard L: (H x W) 983 x 780 mm
